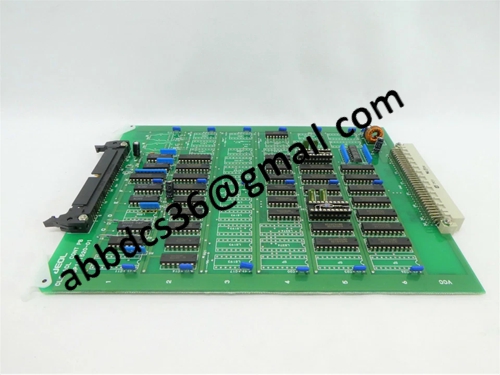

Jeol BP101520-01 Controller Board
Руководство по продукту：
Jeol BP101520-01 Controller Board
1. Supporting JEOL electron microscope to undertake local unit logic control work
2. Receive master control instructions and coordinate the coordinated operation of various driving components
3. Integrated signal processing circuit to complete signal analysis and scheduling
4. Partition line planning effectively reduces signal crosstalk
5. Built in protective circuit to withstand transient voltage spikes
6. High temperature resistant PCB substrate, suitable for long-term high temperature environment of chassis
7. Independent signal channel ensures synchronous execution of multiple instructions
8. The electroplating through-hole process is stable and not prone to poor contact during long-term use
9. Fast computation response ensures precise timing of mechanism actions
10. Insulation wiring design, suitable for high voltage working environment of equipment
11. Component reinforcement welding, with excellent seismic performance
12. Equipped with a status feedback link for easy troubleshooting and maintenance
13. Original factory calibration of electrical parameters, highly compatible with the entire system
14. Surface solder mask protection to reduce dust and moisture erosion
15. Standardized external dimensions, fault boards can be directly replaced
The Jeol BP101520-01 controller board serves as the local control core, coordinating and driving components to work in an orderly manner, ensuring stable operation of equipment functions.

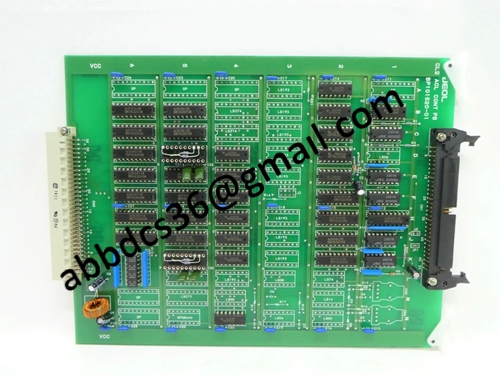

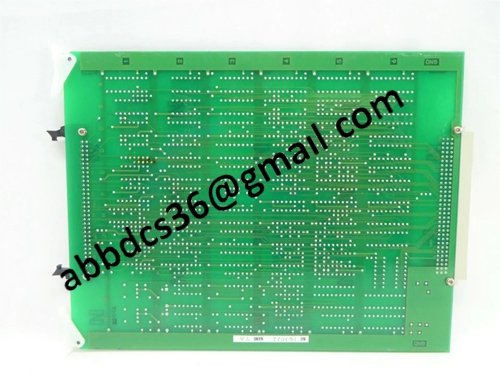

Подробные фотографии продукта：
BP101520-01
