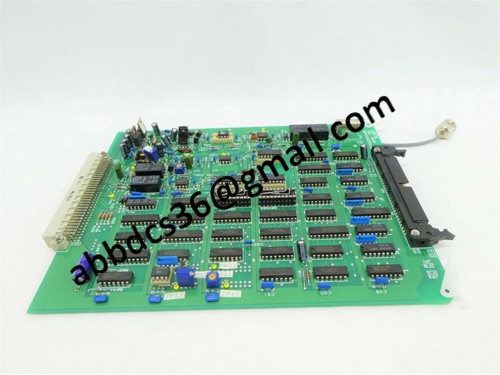

Jeol BP101825 Printed Circuit Board

Руководство по продукту：

Jeol BP101825 Printed Circuit Board
1. Compatible with JEOL JWS-7555S Semiconductor Scanning Electron Microscope SEI Signal Amplification Unit
2. Precise circuit layout ensures stable transmission of secondary electronic signals
3. The substrate is resistant to high and low temperatures and suitable for the working conditions around the vacuum chamber of the equipment
4. Stable impedance control reduces transmission loss of weak signals
5. The metalized hole process is reliable and not prone to poor contact during long-term operation
6. Сильная способность защиты от помех, reducing image signal clutter
7. Стандартное определение интерфейса, easy disassembly and replacement of the whole machine
8. The board surface has high flatness, and the components are firmly soldered without easy detachment

9. Отличные изоляционные характеристики, avoiding the risk of leakage under high voltage conditions
10. Multi layer wiring structure, высокая интеграция, saves internal space of equipment
11. After factory aging testing, it has strong stability in continuous operation
12. The solder mask is corrosion-resistant and can withstand workshop dust and trace amounts of water vapor
13. Высокая скорость отклика сигнала, meeting the timing requirements for wafer defect detection
14. The size specifications are standardized by the factory, perfectly matching the equipment card slot
15. Spare parts have good universality and can directly replace faulty boards of the same model
The Jeol BP101825 printed circuit board is a dedicated main control board for the SEI amplification system of electron microscopes, ensuring stable and reliable imaging of wafer inspection equipment
