JEOL BP102161-00 Printed Circuit Board
Руководство по продукту：
JEOL BP102161-00 Printed Circuit Board
1. Specially designed for JEOL electron microscopy circuit carrier substrate
2. Multi layer circuit structure, integrating multiple signal channels
3. Strong thermal stability of the substrate, suitable for continuous heating environment of the chassis
4. Line optimization layout to reduce signal cross interference
5. The through-hole electroplating process meets the standard and is durable and not easily oxidized
6. Balanced impedance design to maintain signal transmission quality
7. Insulation stability under high voltage conditions enhances operational safety
8. Component pad reinforcement to resist slight equipment vibrations
9. Undertake the transmission of control signals and acquisition signals
10. The electrical parameters are designed according to the original factory standards and are compatible with the entire machine
11. Surface solder mask is corrosion-resistant and reduces the impact of dust adhesion
12. Onboard auxiliary filtering routing to weaken external clutter
13. Standardized positioning hole size, precise installation and alignment
14. The factory electrical inspection is qualified and the performance consistency is high
15. Directly replace the faulty board without the need for additional program debugging
The JEOL BP102161-00 printed circuit board is a key carrier board inside the electron microscope, supporting reliable flow of various electrical signals.

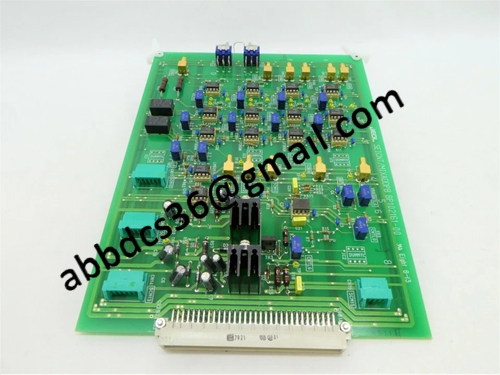

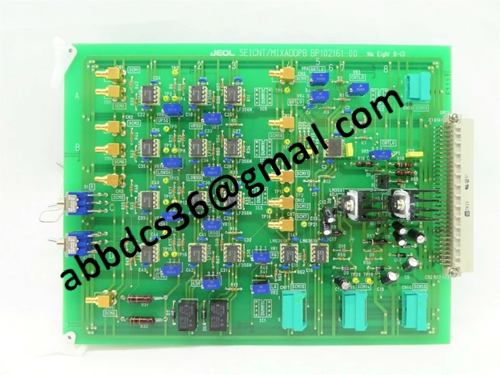

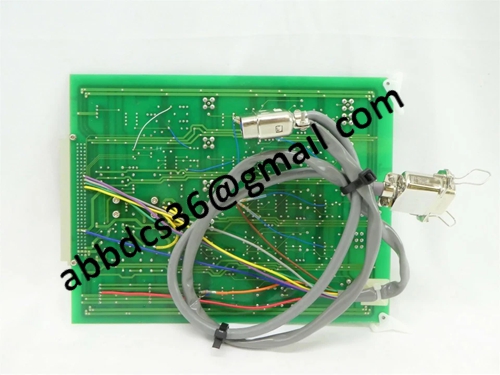

Подробные фотографии продукта：
BP102161-00
