Привод шагового двигателя Pacific Scientific 6410-024-N-N-N

Руководство по продукту：

Привод шагового двигателя Pacific Scientific 6410-024-N-N-N

я. Обзор

6410-024-N-N-N is a micro stepper driver in the Pacific Scientific 6410 ряд, used to control two-phase stepper motors and achieve high-precision position, velocity, and direction control. It is widely used in automated positioning and motion control systems.

2、 Drive function
Convert STEP/DIR pulse signals into motor phase current control
Support two-phase stepper motor drive control
Adopting PWM chopping current control method
Support micro step operation to improve resolution
Adjustable output current, suitable for different motor specifications
Supports 24-75V DC power supply
Equipped with overcurrent, пониженное напряжение, and short-circuit protection functions
Support idle current reduction function to reduce heat generation
Support automatic fault recovery mechanism
Suitable for open-loop motion control systems
3、 Возможности модуля
High precision micro step control, smooth operation
20kHz high-frequency chopper technology reduces noise and vibration
Stable output, suitable for medium to high dynamic loads
Support multiple current settings to match different motors
Сильная способность защиты от помех
Промышленный дизайн, высокая надежность
Suitable for continuous operation conditions
Easy installation and debugging
Compatible with multiple standard stepper motors
Widely used in automation equipment and positioning platforms
4、 Заключение

This module is a high-performance stepper motor driver used to achieve precise position and speed control, and is a key execution unit in industrial automation motion control systems.

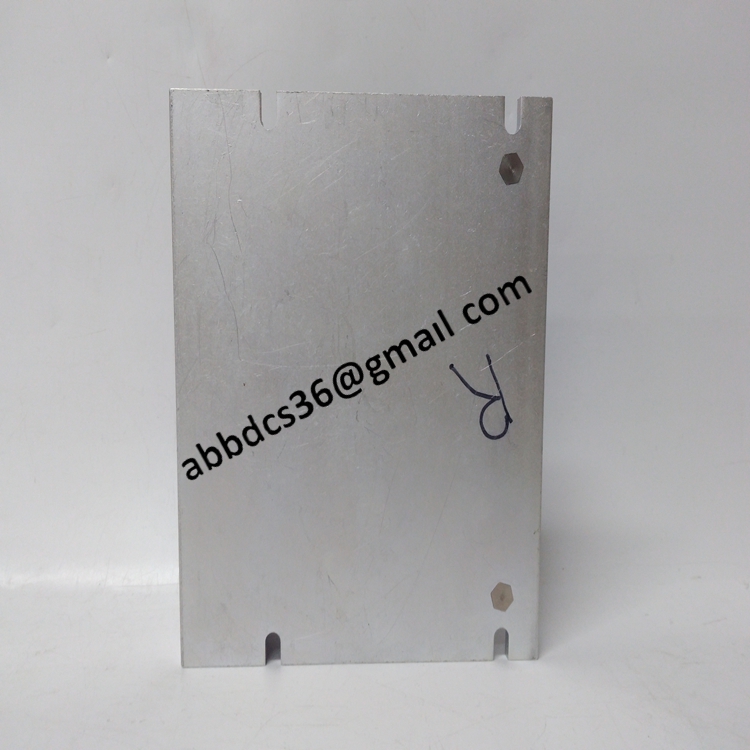

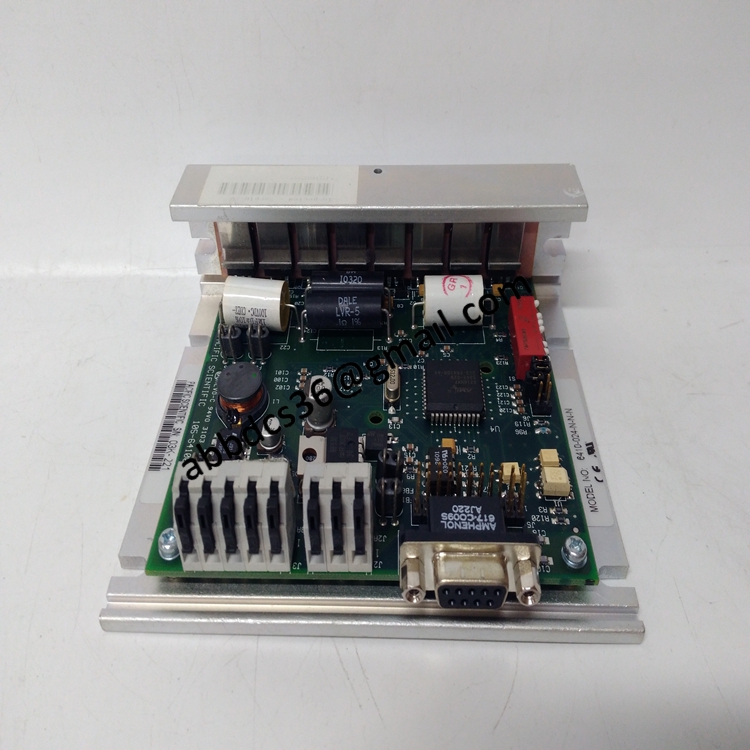

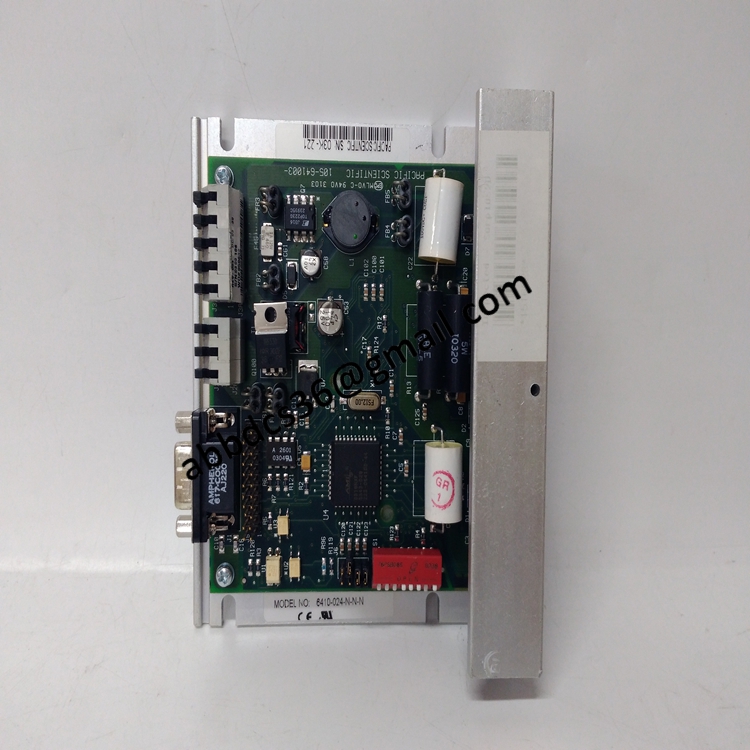

Подробные фотографии продукта：

6410-024-N-N-N
