Филипс 459800324111 bracket power PCB
Руководство по продукту：
Филипс 459800324111 bracket power PCB product features
Филипс 459800324111 is a dedicated power supply circuit board for Philips CT scanning racks, responsible for power distribution of rack rotation units
Multi layer high current copper foil wiring, carrying frame motor high power output without heating
Integrate multiple voltage stabilizing output circuits to supply encoders, limiters, and drive components separately
Large area copper heat dissipation design, suitable for high-speed rotation and continuous high load working conditions of the rack
Built in EMI filtering circuit to suppress power clutter interference caused by high voltage in the tube
Multiple hardware protection: сверхток, перенапряжение, короткое замыкание, overtemperature automatic cut-off output
Medical grade radiation resistant board, resistant to aging and leakage in long-term computer room radiation environment
Integrated reinforcement welding process, able to withstand continuous rotation and vibration of the frame without detachment of welding
Partition independent power channels, strong and weak power line partitions do not interfere with each other
Large capacity energy storage capacitor array to offset the transient voltage drop impact of the power grid
Multiple sets of standardized docking terminals, with neat and convenient wiring harness docking inside the rack
Gold plated high-voltage connectors are not easily oxidized and have poor contact after long-term rotation and insertion
Equipped with segmented power indicator lights, quickly locate the fault point of a single power supply
Compact fitting board type, suitable for narrow and enclosed installation spaces of racks
Original factory matching circuit logic, Philips CT rack of the same model can be directly replaced
Филипс 459800324111 bracket power PCB is the core power supply control circuit board for medical CT gantry rotation system

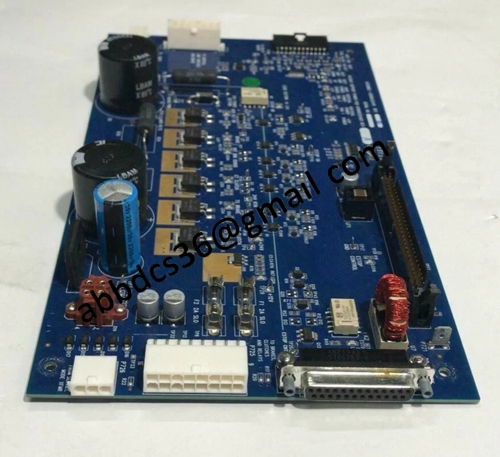

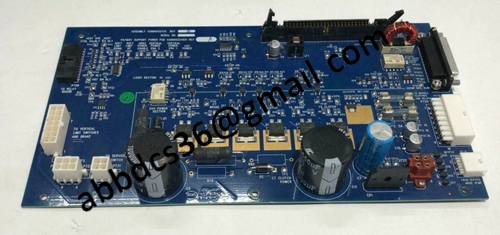

Подробные фотографии продукта：
459800324111
