Релейный модуль SCXI-1160
Руководство по продукту：
Релейный модуль SCXI-1160
я. Обзор
SCXI-1160 is a universal relay switch module in the NI SCXI series, using a 16 channel independent SPDT (Single Pole Double Throw, Form C) relay structure for signal switching, channel routing, and external device control. It is a typical multi-channel industrial test switch module.
2、 Relay switch function
16 independent SPDT relay channels
Support signal switching and multiplexing control
Can be used for analog signal or medium power signal switching
The relay is designed with low contact resistance, resulting in minimal signal distortion
Support software control of on/off status
Can achieve multi-point measurement channel switching
Support parallel expansion of multiple modules to increase the number of channels
Suitable for Automatic Test Systems (ATE)
Can be used for laboratory and industrial signal routing systems
3、 Основные возможности модуля
Design of 16 channel high-density relay
SPDT structure, flexible switching
Low thermoelectric potential design, small measurement error
Suitable for medium voltage/current signal control
Быстрая скорость ответа, suitable for automatic testing
Support remote software programming control
Modular structure for easy system expansion
Used in conjunction with the SCXI chassis system
Высокая стабильность, подходит для длительной эксплуатации
Widely used in testing and signal switching scenarios
4、 Заключение
SCXI-1160 is essentially a multi-channel relay switch module used to achieve flexible signal switching and routing control, and is an important component of automated testing and data acquisition systems.

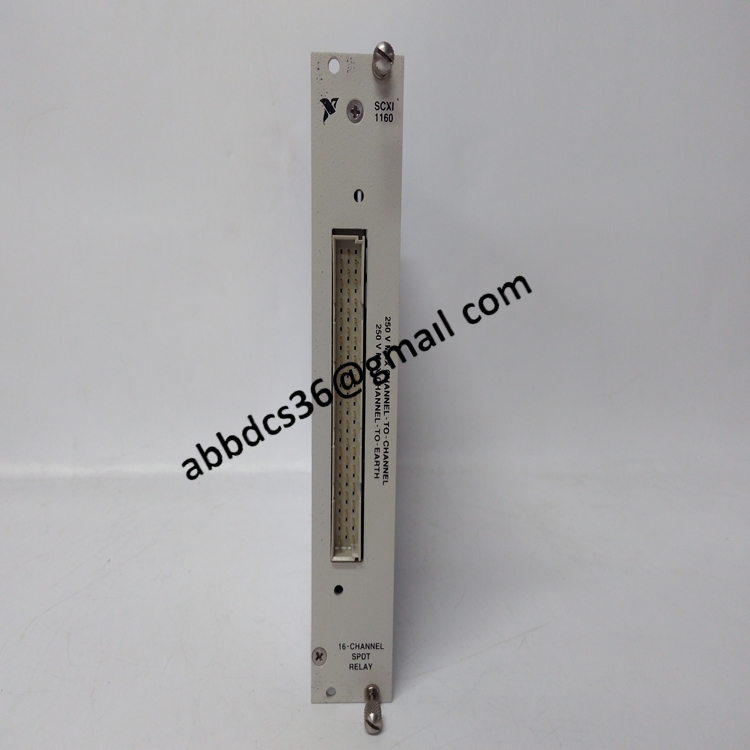

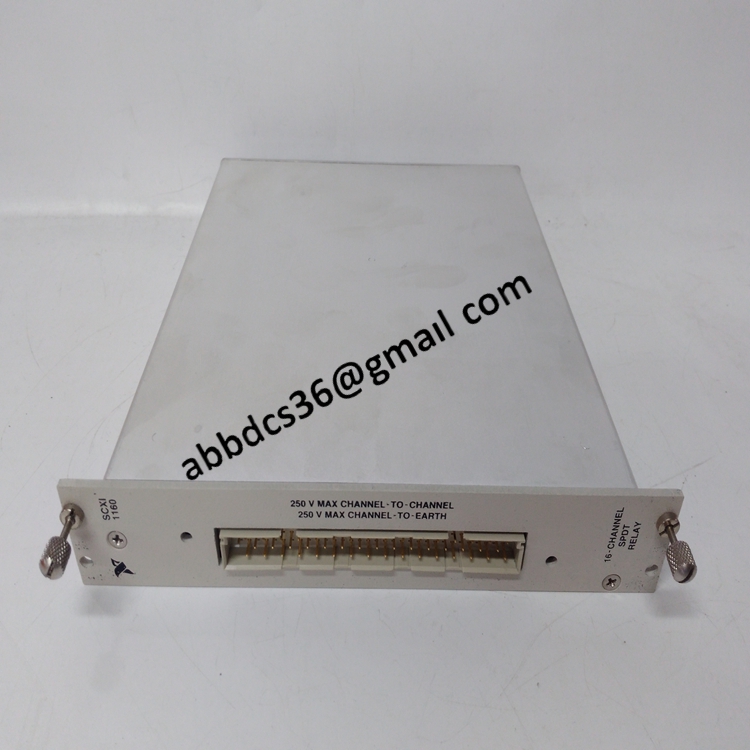

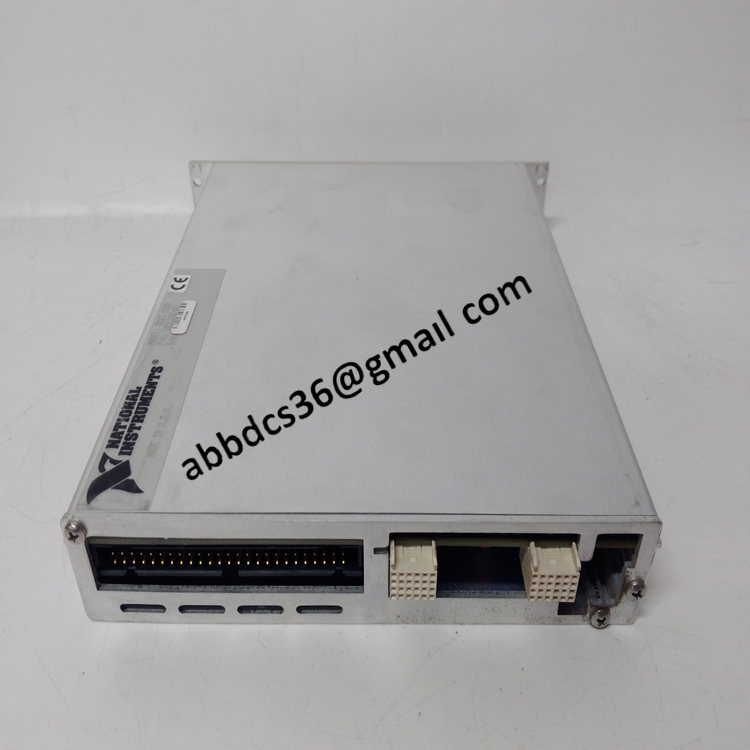

Подробные фотографии продукта：
SCXI-1160
