SCYC51061 5761718-7A transmission plate

Руководство по продукту：

SCYC51061 5761718-7A is an ABB transmission control board used for pulse triggering and signal conditioning in high-power transmission systems.

1. High precision pulse output, compatible with thyristor power unit drive
2. Onboard electrical isolation, effectively separating strong and weak electrical circuits
3. Support synchronous sampling of the power grid, with high phase locking accuracy
4. Equipped with pulse loss and synchronization anomaly fault detection
5. Built in multiple hardware protections for overvoltage, сверхток, и перегрев
6. Adapt to the installation of the system backplane bus slot, легко разбирать и собирать
7. Supports multiple pulse modulation modes such as phase-shifting and PWM

8. Multiple channels for analog and digital signal acquisition and processing
9. Встроенный индикатор состояния, удобно для устранения неполадок на месте
10. 24V DC backplane power supply, low overall power consumption of the machine
11. Circuit board coating protection, dust and moisture resistance
12. Fast response speed to meet real-time control of high-power transmission
13. Can work in conjunction with the same series of transmission boards
14. Широкий температурный рабочий диапазон, suitable for industrial control cabinet environment
15. Compliant with industrial EMC standards and resistant to on-site electromagnetic interference

SCYC51061 5761718-7A is widely used in metallurgy and high-power rectification transmission equipment to ensure stable operation of the transmission system.

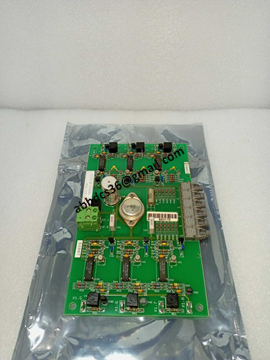

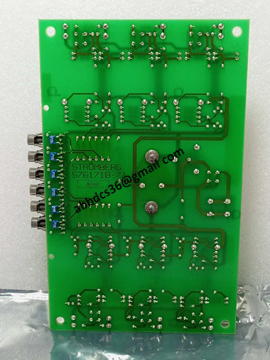

Подробные фотографии продукта：

SCYC51061 5761718‑7A
