SIEMENS 6SE6420-2AB17-5AA1 Control System
Руководство по продукту：
SIEMENS 6SE6420-2AB17-5AA1 Control System
Введение: Siemens 6SE6420-2AB17-5AA1 belongs to the MM420 small universal frequency converter, single-phase 220V, 0.75kW, used for speed control of small AC motors.
Single phase 200-240V AC input, suitable for low-power motor drive
Rated power 0.75kW, adjustable output frequency 0-650Hz
Basic V/F control, smooth low-speed operation, low noise
Built in PID regulation, capable of achieving closed-loop control of flow and pressure
150% overload capacity can last for 60 seconds to cope with short-term load shocks
Comes with RS485 communication and supports Modbus docking with PLC upper computer
Multi channel programmable digital/analog IO, freely matched with sensors and solenoid valves
BiCo internal signal interconnection, flexible and versatile functional configuration
Integrated protection for overvoltage, пониженное напряжение, сверхток, перегрев, and short circuit
Модульная конструкция, tool free disassembly and assembly of the operation panel
Compact body, standard DIN rail installation, экономия места в шкафу управления
Composite braking function, controllable motor start stop response speed
Four jump frequencies can be set to avoid the resonance range of the device
Protection level IP20, suitable for indoor clean workshop working conditions
Suitable for conveyor lines, small fans, pump bodies, and automated chemical equipment
Заключение: SIEMENS 6SE6420-2AB17-5AA1 is a compact and easy to debug motor speed control core unit for small automation equipment.

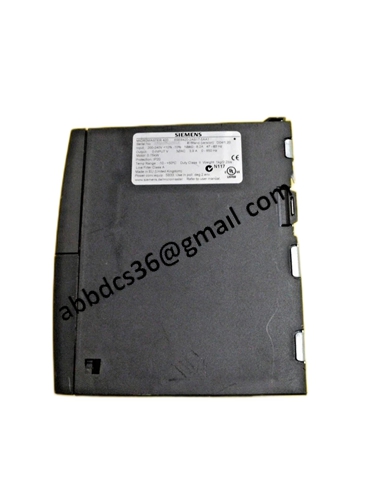

Подробные фотографии продукта：
6SE6420-2AB17- 5AA1
