8EI8X8MWS10.06 00-1 servo drive
Product Manual：
8EI8X8MWS10.06 00-1 Servo Drive Product Features
8EI8X8MWS10.06 00-1 is a B&R B&R ACOPOS P3 series single axis servo drive, wall mounted, suitable for mid to high end automation equipment, with strong power, high precision, and flexible configuration.
The model is 8EI8X8MWS10.06 00-1, belonging to the ACOPOS P3 series.
Single axis control design, suitable for high-precision motion control scenarios.
The input voltage is compatible with 1 × 110-230VAC and 3 × 200-230VAC.
Rated current 8.8A, maximum capacity 5kVA.
Integrated digital multi standard encoder interface for precise feedback.
Built in braking resistor, suitable for frequent start stop working conditions.
Wall mounted structure, size 290 × 66 × 258.5mm.
Protection level IP20, suitable for conventional industrial environments.
Working temperature -25 ℃ to 55 ℃, with strong environmental adaptability.
Support dynamic node allocation (DNA) for convenient networking.
Comes with one plug-in module slot, with expandable functionality.
Equipped with multiple protections against overvoltage, overcurrent, and short circuit.
Support adaptation to multiple power grid standards such as TT/TN/IT.
Compliant with EN 61800-3 C3 EMC specification, with strong anti-interference capability.
CE/UL certification is complete and compatible with global equipment.
In summary, the 8EI8X8MWS10.06 00-1 servo drive is widely used in fields such as machine tools, robots, packaging equipment, etc. due to its wide voltage adaptation, high-precision feedback, strong protection design, and flexible expansion capability. It is a reliable driving component for industrial automation motion control.

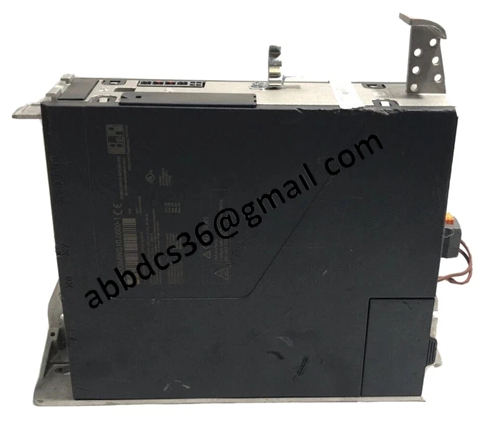

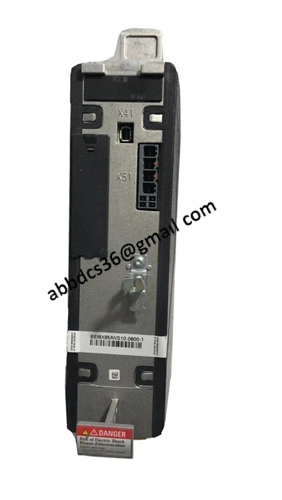

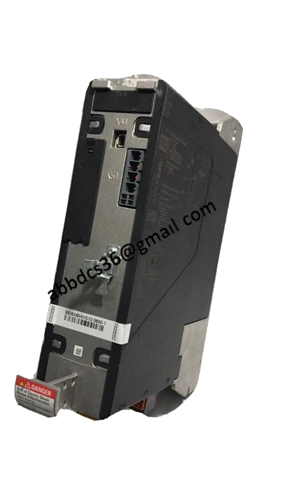

Product detailed pictures：
8EI8X8MWS10.06 00-1
