Allen Bradley 22C-D060A103 Adjustable Frequency Driver
Product Manual：
22C-D060A103 is an AB PowerFlex400 variable frequency drive, commonly used for speed control of water pump fans.
1. Model 22C-D060A103, Rockwell three-phase frequency converter.
2. Rated power of 30kW, compatible with 480V industrial three-phase power supply.
3. Output rated 60A current, with sufficient load driving capability.
4. V/F control mode, smooth start stop to reduce equipment mechanical impact.
5. Standard RS485 communication port, which can be connected to industrial control system networking and control.
6. The body comes with an operation panel that allows for on-site modification of operating parameters.
7. Integrate multiple fault protection circuits such as overcurrent and thermal grounding.
8. IP30 protection level, easy and reliable wall mounted installation of cabinet.
9. Adapt to variable torque loads and optimize energy-saving retrofitting of water pumps and fans.
10. Built in cooling fan, stable temperature control at full load for a long time.
11. Wide voltage tolerance, small fluctuations in the power grid are less likely to cause errors and shutdowns.
12. Fault code display, quickly locate the abnormal point of the equipment.
13. Optimize EMC circuits to mitigate the impact of surrounding electrical interference.
14. Original standardized specifications, excellent universality for spare parts replacement.
15. Commonly used in HVAC, water treatment, and chemical complete sets of equipment.
Overall, 22C-D060A103 runs stably and is easy to debug, making it a commonly used speed control spare part in the industrial control field.

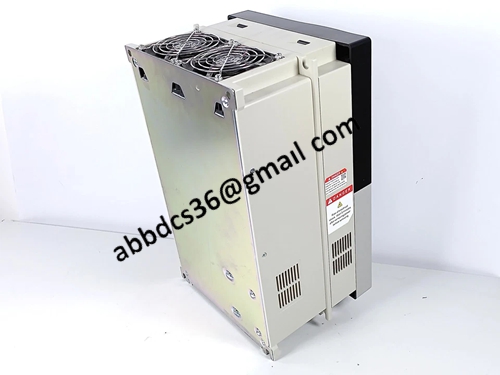

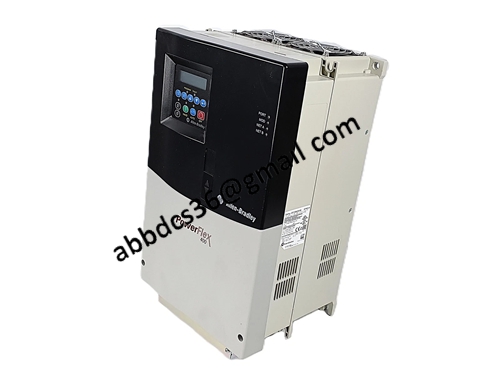

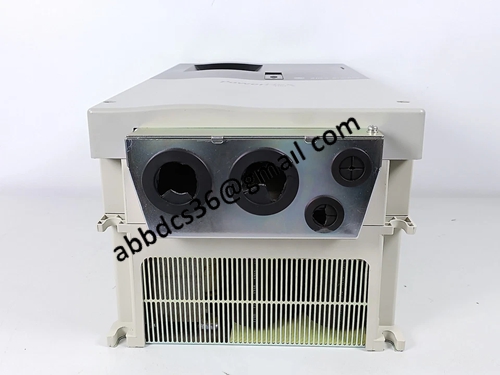

Product detailed pictures：
22C-D060A103
