ACS CMnt2201N0N0200-ORB1 Driver
Product Manual：
ACS CMnt2201N0N0200-ORB1 Driver
Introduction: ACS CMnt series two axis drive control integrated EtherCAT main station driver, dedicated for semiconductor precision platforms.
Built in dual servo drives, compatible with linear, voice coil, and AC servo motors
85-230V wide AC input, maximum single axis output 15A current
20kHz servo operation cycle, smooth motion with minimal positioning jitter
Supports multiple encoders: incremental, sine cosine, absolute value feedback
EtherCAT high-speed bus, capable of coordinating up to 32 axis synchronous control of the entire machine
Equipped with gantry decoupling and vibration suppression algorithms to eliminate mechanical resonance offset
Integrated STO safety torque shutdown to meet equipment safety standards
Equipped with a complete set of fault protection for overcurrent, overvoltage, overheating, and short circuit
Multi channel digital/analog IO, connected to limit and visual trigger signals
Multiple communication interfaces, Ethernet, Modbus, RS232 docking with upper host
Distributed clock synchronization, multi axis synchronization error less than 0.1 microseconds
Metal integrated body, sufficient heat dissipation, dust and earthquake resistance
Industrial wide temperature element devices for long-term stable operation in clean workshops
Equipped with specialized debugging software, parameter tuning and fault diagnosis are convenient
Standard rail rack installation, direct replacement of spare parts of the same model
Conclusion: ACS CMnt2201N0N0200-ORB1 has high synchronization control accuracy and is commonly used in precision equipment for wafer transfer and optical inspection.

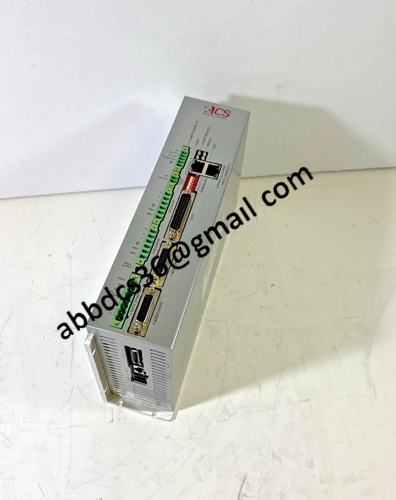

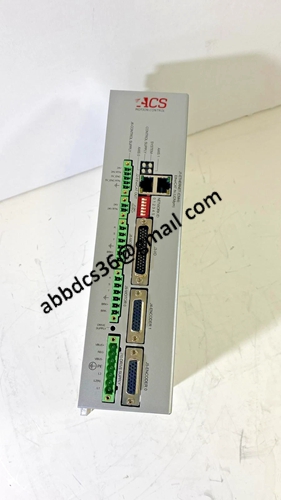

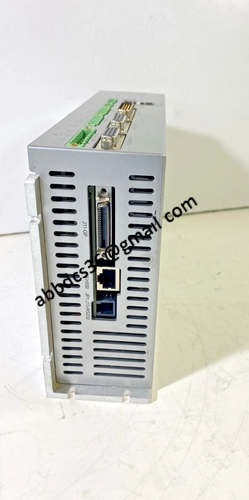

Product detailed pictures：
CMnt2201N0N0200-ORB1
