CDHD2-0032AEC2 Digital Servo Drive

Product Manual：

CDHD2-0032AEC2 is a high-performance digital servo drive that is suitable for precision automation and high-precision motion control of gantry equipment.
1. CDHD2-0032AEC2 has high power density and compact body, saving cabinet space
2. Equipped with a high-speed current loop, it responds quickly and has no shaking during start stop operation
3. Built in vibration suppression algorithm to eliminate mechanical resonance and ensure smooth operation
4. Supports EtherCAT bus, with strong real-time multi axis synchronization
5. Compatible with multiple encoders, can be paired with linear and torque servo motors
6. Equipped with a second encoder interface to achieve dual closed-loop precise positioning
7. Comes with gantry control function, compatible with dual drive gantry workbench
8. Built in STO safety torque cutoff, meeting equipment safety standards
9. Multiple digital IO ports for easy integration of sensors and cylinders

10. Support one click automatic tuning, simple and fast parameter debugging
11. Equipped with ServoStudio software for visual fault diagnosis
12. Integrated error compensation function to correct operational positioning deviation
13. Multiple hardware protections against overcurrent, overvoltage, overheating, and short circuit
14. Standard guide rail installation, easy disassembly, maintenance, and replacement
15. Wide voltage adaptation, suitable for general industrial AC power supply environment
Conclusion: CDHD2-0032AEC2 servo drive has high control accuracy and stable communication, and is a mainstream driving component for semiconductors and precision assembly lines.

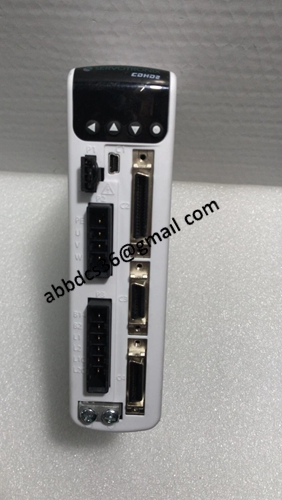

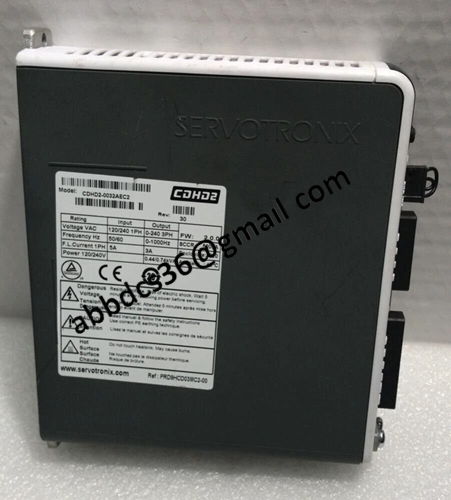

Product detailed pictures：

CDHD2-0032AEC2

product video
