DS200TCTGG1AFF Printed Circuit Board
Product Manual：
DS200TCTGG1AFF Printed Circuit Board
DS200TCTGG1AFF is the Simplex Trip Board of the GE Speedtronic Mark V gas turbine control system. It is the core safety protection module of the system, responsible for fault detection and emergency stop control.
Brand belongs to GE, model DS200TCTGG1AFF, series Mark V DS200, function code TCTG.
Core positioning: Single trip/medium trip board, executing system fault protection and safety shutdown logic.
Onboard 21 plug-in relays for executing discrete output and tripping actions.
Interface configuration: 3 50 pin connectors (JLY/JLX/JLZ), 2 12 pin connectors (JN/JM).
The power supply standard is 24VDC, suitable for industrial DC power supply environment.
The power consumption is about 25W, which meets the continuous operation requirements of industry.
Working temperature -40 ℃~+75 ℃, wide temperature design suitable for harsh working conditions.
The size is approximately 330 × 280 × 50mm, with rack mounted card installation.
Weighing approximately 1.34kg (2.95lb), the structure is compact and sturdy.
Equipped with electrical isolation design to protect the system from on-site voltage surges.
Onboard status indicator lights and fuses facilitate on-site diagnosis and maintenance.
Support hardware reset function, which can quickly restore the running state.
Complies with the IEC 61508-2 safety standard and meets industrial safety requirements.
Suitable for safety control scenarios of rotating machinery such as gas turbines and steam turbines.
Provide critical trip outputs for the Mark V system to ensure equipment and personnel safety.
The DS200TCTGG1AFF printed circuit board is the core hardware for implementing safe tripping and fault protection in the GE Mark V control system.

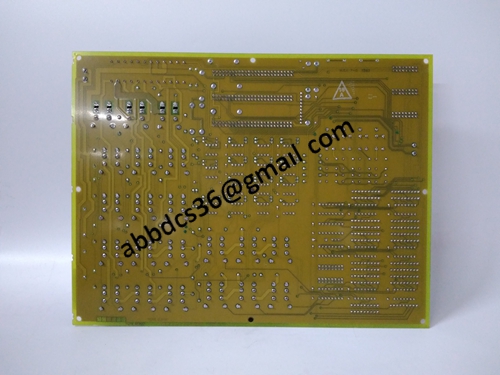

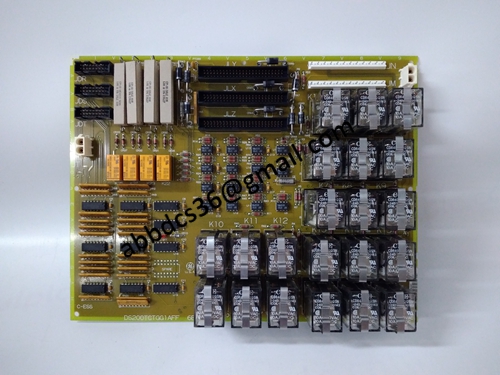

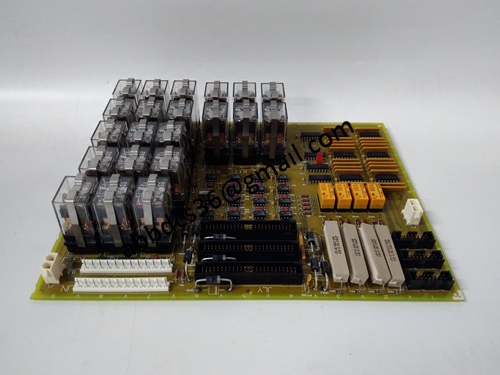

Product detailed pictures：
DS200TCTGG1AFF
