TSXDMZ28DTK Input/Output DC Module
Product Manual：
TSXDMZ28DTK input/output DC module is compatible with TSX Micro series PLC, with 28 mixed channels and 24V DC transistor output.
1. 16 DC inputs, 12 solid-state outputs, balanced channel configuration
2. Optoelectronic isolation design effectively isolates external signal interference
3. Single channel output current of 0.5A, stable load driving capability
4. Supports 2-wire and 3-wire proximity switches, with wide sensor adaptability
5. The channel is equipped with LED indicator lights, and the operating status is intuitively visible
6. HE10 standard connector, matched with prefabricated cables for fast wiring
7. TSXDMZ28DTK input/output DC module has fast response speed and no delay in high-frequency switching
8. Equipped with dual circuit protection for short circuit and reverse connection, it is not easy to burn out
9. Support PNP/NPN signal switching and adapt to different field devices
10. Standard DIN rail installation, easy disassembly and assembly of control cabinet
11. Low power operation, with the overall power consumption controlled within 3.5W
12. Wide temperature working range, stable and continuous operation from 0 to 55 ℃
13. The module backplane is firmly plugged in, resistant to earthquakes, and not prone to poor contact
14. Channel grouping isolation, single channel failure does not affect other channels
15. TSXDMZ28DTK input/output DC module is compact in size, saving rack installation slots
The TSXDMZ28DTK input/output DC module has strong versatility and is a standard I/O expansion accessory for small automated production lines.

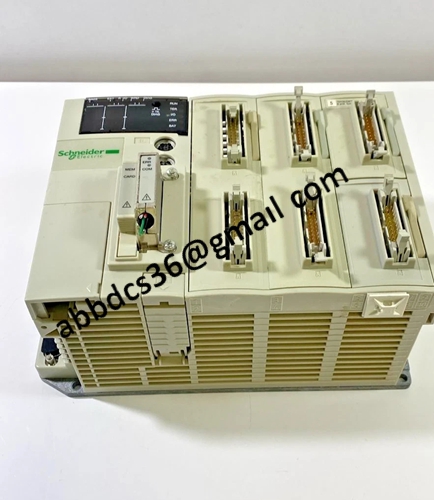

Product detailed pictures：
TSXDMZ28DTK
product video
