Модуль ввода/вывода постоянного тока TSXDMZ28DTK
Руководство по продукту：
TSXDMZ28DTK input/output DC module is compatible with TSX Micro series PLC, с 28 mixed channels and 24V DC transistor output.
1. 16 DC inputs, 12 solid-state outputs, balanced channel configuration
2. Optoelectronic isolation design effectively isolates external signal interference
3. Single channel output current of 0.5A, stable load driving capability
4. Supports 2-wire and 3-wire proximity switches, with wide sensor adaptability
5. The channel is equipped with LED indicator lights, and the operating status is intuitively visible
6. HE10 standard connector, matched with prefabricated cables for fast wiring
7. TSXDMZ28DTK input/output DC module has fast response speed and no delay in high-frequency switching
8. Equipped with dual circuit protection for short circuit and reverse connection, it is not easy to burn out
9. Support PNP/NPN signal switching and adapt to different field devices
10. Стандартная установка на DIN-рейку, легкая разборка и сборка шкафа управления
11. Работа с низким энергопотреблением, with the overall power consumption controlled within 3.5W
12. Широкий температурный рабочий диапазон, stable and continuous operation from 0 к 55 ℃
13. The module backplane is firmly plugged in, resistant to earthquakes, and not prone to poor contact
14. Channel grouping isolation, single channel failure does not affect other channels
15. TSXDMZ28DTK input/output DC module is compact in size, saving rack installation slots
The TSXDMZ28DTK input/output DC module has strong versatility and is a standard I/O expansion accessory for small automated production lines.

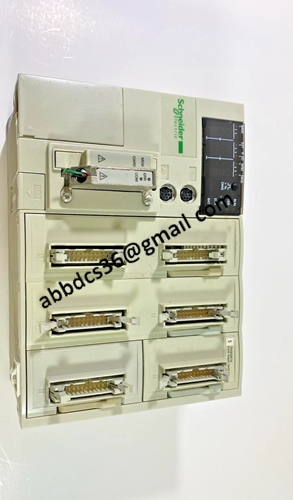

Подробные фотографии продукта：
TSXDMZ28DTK
