DS200TCQCG1BGF power feedback board

Руководство по продукту：

DS200TCQCG1BGF power feedback board (Mark V)
Suitable for GE Mark V gas turbine control system, specializing in power parameter monitoring and feedback.
Core functions: isolation current/voltage feedback, IGBT gate drive, fault detection.
Hardware: Includes 6 optically isolated IGBT drivers, isolation transformers, and 9 red status LEDs.
Interface: Multiple sets of industrial connectors for docking backboards and power circuits.
Isolation: Channel level electrical isolation, resistant to on-site EMI interference.

Protection: Built in overcurrent/overvoltage protection ensures the safety of power devices.
Environment: * * -40 ℃~70 ℃ * * Wide temperature range, three proof coating, suitable for harsh working conditions in power plants.
Installation: Standard cabinet slot type, easy to plug and maintain.
Diagnosis: LED status+fault self check, quickly locate abnormalities.
Spare parts attribute: Mark V discontinued core spare parts, used for power circuit monitoring and protection.
DS200TCQCG1BGF is the monitoring and protection hub for the Mark V system power circuit, ensuring the safety and stability of power supply and drive.

Подробные фотографии продукта：

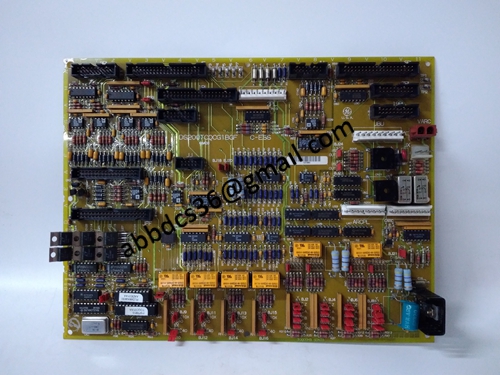

DS200TCQCG1BGF
