JEOL S20A-0842-0100A/01 PCB card

Руководство по продукту：

JEOL S20A-0842-0100A/01 PCB card
1. Adapt to the internal signal processing unit of JEOL scanning electron microscope
2. Precise circuit layout ensures efficient transmission of weak current signals
3. Industrial grade board, suitable for temperature fluctuations inside the chassis environment
4. Built in filtering circuit to weaken electromagnetic signal interference
5. Standard metalized through-hole, stable contact during long-term operation
6. Reasonable impedance control to reduce signal transmission attenuation
7. Reliable insulation structure to avoid potential leakage hazards in high-voltage environments
8. The components are firmly welded and have certain seismic resistance

9. Multiple signal channels for bidirectional data exchange
10. Original factory timing design, perfectly matched with the host control system
11. Corrosion resistant solder mask coating, resistant to dust and trace moisture erosion
12. Integrated power supply stabilizing circuit, buffering the impact of voltage fluctuations
13. Unified specification interface, easy to replace and disassemble on site
14. After factory aging testing, it has strong stability in continuous operation
15. Standardization of board size to fit equipment installation slots
The JEOL S20A-0842-0100A/01 PCB card is a built-in signal processing board for electron microscopes, responsible for internal signal acquisition and transmission tasks of the equipment.

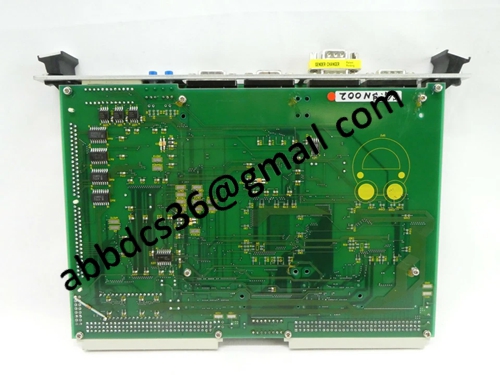

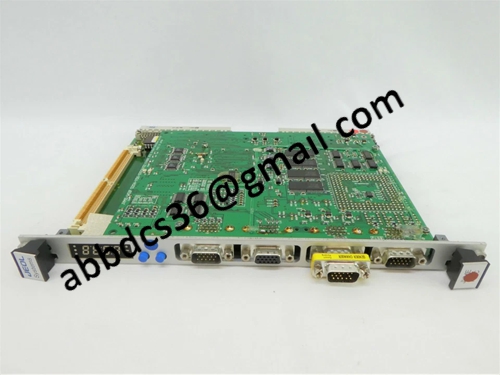

Подробные фотографии продукта：

S20A-0842-0100A/01
