SCXI-1302 Terminal Block
Руководство по продукту：
SCXI-1302 Terminal Block
я. Обзор
SCXI-1302 is a front-end terminal module in the NI SCXI series, used to safely and conveniently connect external sensors or signal lines to the SCXI data acquisition system. It is a passive terminal unit for signal wiring and distribution.
2、 Основные функции
Provide approximately 50 screw type terminal blocks
Used for analog signal, Напряжение, current and other signal access
Realize fast connection of external signals to the internal system
Support centralized access of multi-channel signals
Provide shielding structure to reduce interference impact
Support signal line fixation and stress relief design
Can be used for measuring system signal allocation
Easy on-site wiring and maintenance
Belongs to pure wiring/adapter type module, without signal processing function
3、 Основные возможности модуля
Passive terminal structure, without signal processing
50 screw connection, intuitive connection method
Compatible with SCXI chassis system
Support multiple wire diameter access
Sturdy structure, suitable for industrial environments
Improve the standardization and reliability of system wiring
Easy to replace and maintain quickly
Shielding design enhances anti-interference capability
Modular installation method
Commonly used in testing and data acquisition systems
4、 Заключение
SCXI-1302 is essentially a signal terminal module used to reliably introduce external signals into the SCXI system, and is the basic connecting component in the data acquisition link.

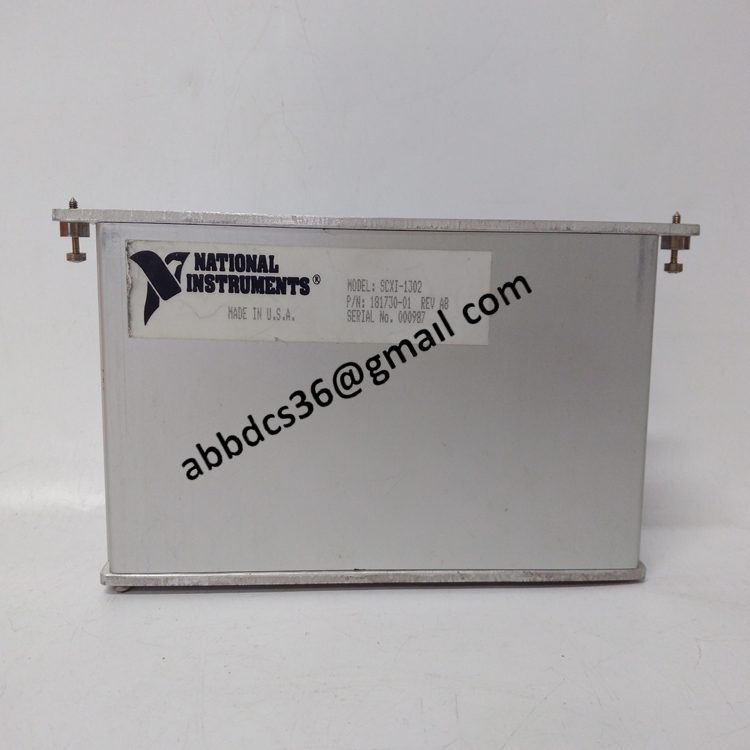

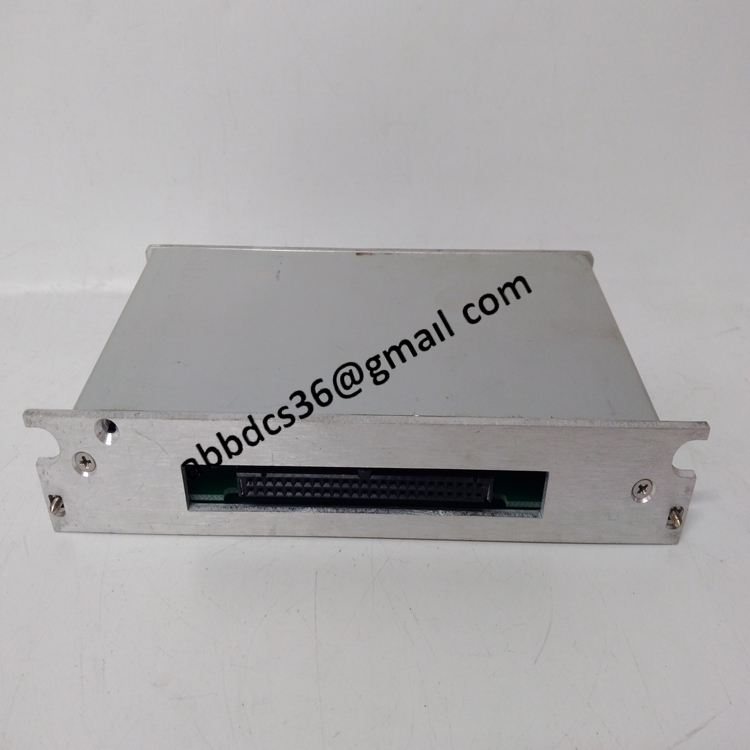

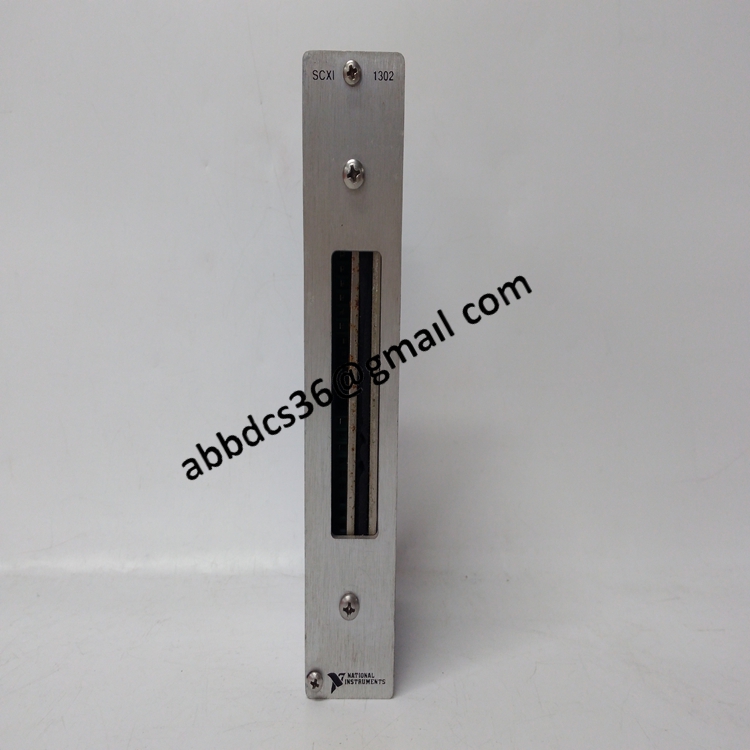

Подробные фотографии продукта：
SCXI-1302
